FujiFilm DR Detectors
Fujifilm’s line of rugged, lightweight, water-resistant digital detectors are available in Csl or GOS and feature high DQE and low noise at ultra-low doses.

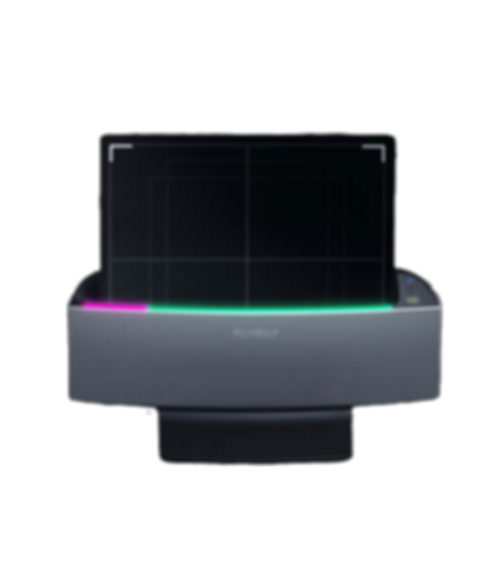

FDR D-EVO III features an innovative Fujifilm flexible film-based capture circuitry layer, engineered to help reduce signal blur and provide excellent DQE and dose performance. Eliminating the conventional glass panel layer inside significantly reduces the weight of the 14×17″ detector to just 4 lbs. and improves durability. FDR D-EVO III retains all of the innovative benefits of its predecessor FDR D-EVO II such as ISS, tapered edges, Hydro AG antibacterial coating, memory mode, and more. If you already own FDR D-EVO II, no worries transitioning is easy, this latest model is compatible with all of the same accessories; cable, docking stand, charger, batteries.

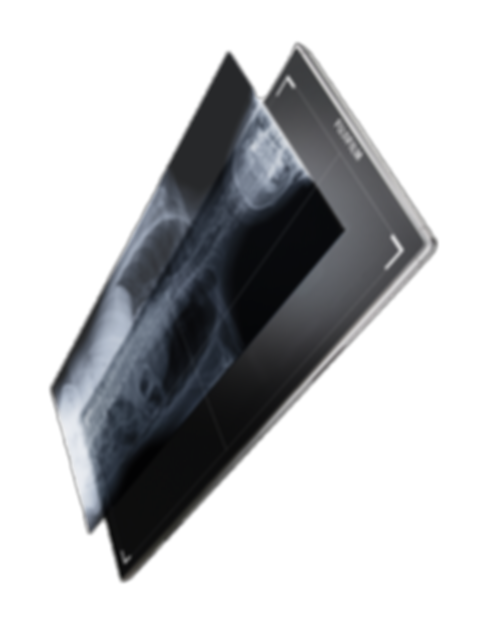

Fujifilm’s latest generation ultra-lightweight, wireless long length detector features a 17×32” field of view and weighs just 12 lbs. FDR D-EVO III G80i brings added portability for spine and leg surgery uses, along with traditional upright and supine long length exams. FDR D-EVO III G80i’s light and thin design is ideal for trauma imaging in the ER and spine, leg and other surgical procedures. It can be used pre-, intra-, and post- surgery for precise verification of planning, measurements, hardware alignments, angles, counts and more. Its wireless connectivity to the console eliminates cords for safer, easier workflow in tight, sterile OR and ER environments. Its Hydro AG protective antibacterial coating provides added safety in infection controls and sterile field uses.
DR D-EVO II provides versatility and peace of mind for your most demanding clinical needs. The detector’s edges are smooth and tapered for easier positioning, it includes built-in image storage, an IPX-6 water resistance rating, and a Fujifilm exclusive antibacterial nano-coating. The D-EVO II 14×17” detector is currently one of the lightest in the world at only 5.7 lbs.

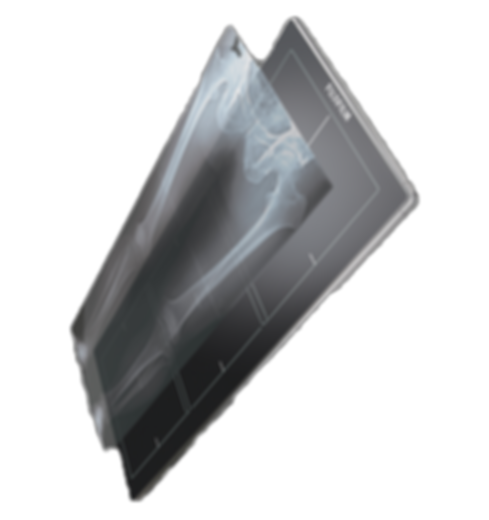

This long-view single exposure detector ensures consistent, easy patient positioning and repeatable image acquisition, reducing exam discomfort for a better patient experience. FDR D-EVO GL is 17×49 inches, expanding the traditional 14 inch CR long length field of view by 3 full inches to better accommodate a variety of patient sizes and help prevent retakes due to anatomy cut off.
Compared to multi-exposure DR, FDR D-EVO GL enhances the workflow of long-view radiography by capturing the entire image in a single exposure in just a few seconds, reducing the chance for patient motion-induced artifacts and time for the patient to remain still.
FDR ES detectors are the next generation of DR retrofit solutions designed with the essential conveniences of Fujifilm image acquisition and design. Light, portable, affordable detectors can optimize your x-ray room for table and free positioning and table top exams with top-of-the-line image quality. There’s also no need to re-work your existing equipment because FDR ES fits existing standard Buckys and holders for simple DR and DR panel retrofits. FDR ES detectors feature 150 micron pixel pitch and a wide 16-bit dynamic range, as well as Fujifilm’s ISS (Irradiated Side Sampling) which provides ultra-sharp imaging with advanced dose efficiency. This exclusive design captures the x-ray image from the incident/patient side of the detector, in contrast to traditional designs which capture the image below the scintillator layer. The result is a reduction in the distance for light to spread, allowing the image to be captured where it’s sharper and stronger as intended.
